| Kubernetes on AWS |
일단 Kubernetes의 개념에서 알아 봤듯이

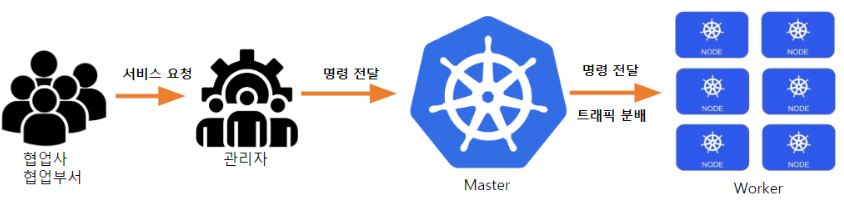

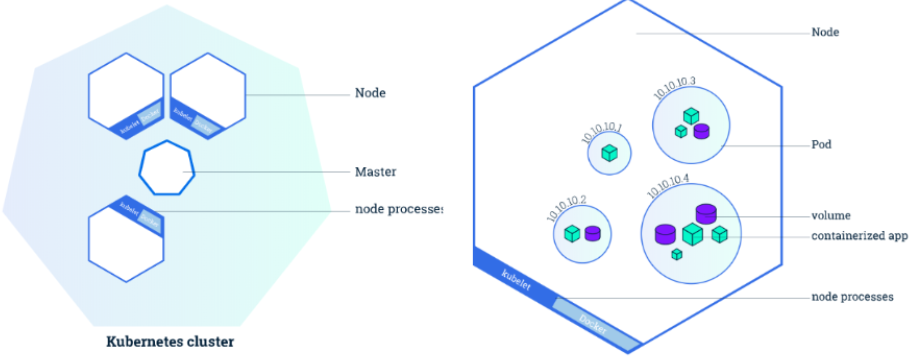

Kubenetes에는 한개의 마스터노드와 여러개의 워커노드가 통신을 합니다.
그러기에 기본적으로 마스터노드/워커노드 역할을 할 서버를 세팅해 줘야겠죠!
여기서 Kops나 Kubespray등 다양한 방법으로 Kubernetes 클러스터를 구성 해 줄수있는데
저는 Kops를 이용하여 구성을 해보도록 하겠습니다.
docker가 설치되어져있다는 전제하에 순서는 다음과 같습니다.
1. kubectl 설치
2. kops 설치
3. 클러스터 구성
1. kubectl 설치 - Binary 를 이용한 설치
curl -LO https://storage.googleapis.com/kubernetes-release/release/`curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt`/bin/linux/amd64/kubectl
특정 버전을 다운받으려면 다음과 같은 형태로 버전을 입력해주면 됩니다.
curl -LO https://storage.googleapis.com/kubernetes-release/release/v1.18.0/bin/linux/amd64/kubectl# install kubectl
[ec2-user@ip-172-31-37-116 bin]$ curl -LO https://storage.googleapis.com/kubernetes-release/release/`curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt`/bin/linux/amd64/kubectl
# 권한설정
[ec2-user@ip-172-31-37-116 bin]$ chmod +x ./kubectl
# 경로설정
[ec2-user@ip-172-31-37-116 bin]$ sudo mv ./kubectl /usr/local/bin/kubectl
# 설치확인
[ec2-user@ip-172-31-37-116 bin]$ kubectl version --client
Client Version: version.Info{Major:"1", Minor:"18", GitVersion:"v1.18.2", GitCommit:"52c56ce7a8272c798dbc29846288d7cd9fbae032", GitTreeState:"clean", BuildDate:"2020-04-16T11:56:40Z", GoVersion:"go1.13.9", Compiler:"gc", Platform:"linux/amd64"}
설치가 잘 된것을 확인하실 수 있습니다.
번외로 Package를 이용한 설치 혹은 다른 OS를 사용하시는 분들은 아래의 문서를 참고하시기 바랍니다.
2. kops 설치
kops도 마찬가지로 바이너리를 이용하여 설치를 진행하겠습니다.
curl -LO https://github.com/kubernetes/kops/releases/download/$(curl -s https://api.github.com/repos/kubernetes/kops/releases/latest | grep tag_name | cut -d '"' -f 4)/kops-linux-amd64
특정 버전을 다운받으려면 다음과 같은 형태로 버전을 입력해주면 됩니다.
curl -LO https://github.com/kubernetes/kops/releases/download/1.15.0/kops-linux-amd64
# 1. install Kops
[root@ip-172-31-37-116 ~]# curl -LO https://github.com/kubernetes/kops/releases/download/$(curl -s https://api.github.com/repos/kubernetes/kops/releases/latest | grep tag_name | cut -d '"' -f 4)/kops-linux-amd64
# 권한설정
[root@ip-172-31-37-116 ~]# chmod +x kops-linux-amd64
# 경로설정
[root@ip-172-31-37-116 ~]# mv kops-linux-amd64 /usr/local/bin/kops
# 설치확인
[root@ip-172-31-37-116 ~]# kops version
Version 1.16.1 (git-d1b07f7fd6)
3. 클러스터 구성
클러스터를 구성하려면 여러개의 단계가 존재하는데요
aws를 기준으로 설명드리자면 클러스터는 IP가 아닌 DNS로 통신을 하기때문에 먼저 DNS를 설정해준 후 클러스터 관리를 위해 상태나 혹은 키 정보들을 저장해줄 스토리지를 구성해줘야 합니다.
저는 aws위에서 관리를 하기에 DNS설정으로는
Route53, 그리고 스토리지로는 S3를 이용하여 구성해보도록 하겠습니다.
3-1. Route53 구성
( 이부분 작성본이 사라져서 추후 업데이트 하겠습니다ㅜㅜ)
3-2. S3구성
# Create Bucket aws s3api create-bucket \ --bucket prefix-example-com-state-store \ --region ap-northeast-2 # S3 versioning aws s3api put-bucket-versioning \ --bucket prefix-example-com-state-store \ --versioning-configuration Status=Enabled
3-3. 환경변수 설정 및 ssh key pair 생성
aws API를 이용하기위한 변수설정
aws API를 이용하기위한 변수설정
[root@ip-172-31-37-116 ~]# export AWS_ACCESS_KEY_ID=$(aws configure get aws_access_key_id)
[root@ip-172-31-37-116 ~]# export AWS_SECRET_ACCESS_KEY=$(aws configure get aws_secret_access_key)
# 사전에 ssh-keygen을 이용하여 키를 생성해줍니다.
[root@ip-172-31-37-116 ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:BTjgg7iUAAIQRTCbpBikyL1b6mQfNZoRwTPE1lR/fQQ root@ip-172-31-37-116.ap-northeast-2.compute.internal
The key's randomart image is:
# /root/.ssh/ 해당경로로 들어가보시면 key가 생성된 것을 보실 수 있습니다!
3-4. 클러스터 설정구성
# kops를 이용하여 클러스터를 생성해봅시다.
[root@ip-172-31-37-116 ~]# kops create cluster --zones ap-northeast-2c ${NAME}
I0430 05:04:27.012121 7656 create_cluster.go:562] Inferred --cloud=aws from zone "ap-northeast-2c"
I0430 05:04:27.057539 7656 subnets.go:184] Assigned CIDR 172.20.32.0/19 to subnet ap-northeast-2c
I0430 05:04:28.477517 7656 create_cluster.go:1568] Using SSH public key: /root/.ssh/id_rsa.pub
Previewing changes that will be made:
I0430 05:04:31.177598 7656 apply_cluster.go:556] Gossip DNS: skipping DNS validation
I0430 05:04:31.229426 7656 executor.go:103] Tasks: 0 done / 92 total; 44 can run
I0430 05:04:32.016602 7656 executor.go:103] Tasks: 44 done / 92 total; 24 can run
I0430 05:04:32.428758 7656 executor.go:103] Tasks: 68 done / 92 total; 20 can run
I0430 05:04:32.503308 7656 executor.go:103] Tasks: 88 done / 92 total; 3 can run
W0430 05:04:32.570352 7656 keypair.go:140] Task did not have an address: *awstasks.LoadBalancer {"Name":"api.kbseo.k8s.local","Lifecycle":"Sync","LoadBalancerName":"api-kbseo-k8s-local-a1vmch","DNSName":null,"HostedZoneId":null,"Subnets":[{"Name":"ap-northeast-2c.kbseo.k8s.local","ShortName":"ap-northeast-2c","Lifecycle":"Sync","ID":null,"VPC":{"Name":"kbseo.k8s.local","Lifecycle":"Sync","ID":null,"CIDR":"172.20.0.0/16","EnableDNSHostnames":true,"EnableDNSSupport":true,"Shared":false,"Tags":{"KubernetesCluster":"kbseo.k8s.local","Name":"kbseo.k8s.local","kubernetes.io/cluster/kbseo.k8s.local":"owned"}},"AvailabilityZone":"ap-northeast-2c","CIDR":"172.20.32.0/19","Shared":false,"Tags":{"KubernetesCluster":"kbseo.k8s.local","Name":"ap-northeast-2c.kbseo.k8s.local","SubnetType":"Public","kubernetes.io/cluster/kbseo.k8s.local":"owned","kubernetes.io/role/elb":"1"}}],"SecurityGroups":[{"Name":"api-elb.kbseo.k8s.local","Lifecycle":"Sync","ID":null,"Description":"Security group for api ELB","VPC":{"Name":"kbseo.k8s.local","Lifecycle":"Sync","ID":null,"CIDR":"172.20.0.0/16","EnableDNSHostnames":true,"EnableDNSSupport":true,"Shared":false,"Tags":{"KubernetesCluster":"kbseo.k8s.local","Name":"kbseo.k8s.local","kubernetes.io/cluster/kbseo.k8s.local":"owned"}},"RemoveExtraRules":["port=443"],"Shared":null,"Tags":{"KubernetesCluster":"kbseo.k8s.local","Name":"api-elb.kbseo.k8s.local","kubernetes.io/cluster/kbseo.k8s.local":"owned"}}],"Listeners":{"443":{"InstancePort":443,"SSLCertificateID":""}},"Scheme":null,"HealthCheck":{"Target":"SSL:443","HealthyThreshold":2,"UnhealthyThreshold":2,"Interval":10,"Timeout":5},"AccessLog":null,"ConnectionDraining":null,"ConnectionSettings":{"IdleTimeout":300},"CrossZoneLoadBalancing":{"Enabled":false},"SSLCertificateID":"","Tags":{"KubernetesCluster":"kbseo.k8s.local","Name":"api.kbseo.k8s.local","kubernetes.io/cluster/kbseo.k8s.local":"owned"}}
I0430 05:04:32.755402 7656 executor.go:103] Tasks: 91 done / 92 total; 1 can run
I0430 05:04:32.840253 7656 executor.go:103] Tasks: 92 done / 92 total; 0 can run
Will create resources:
AutoscalingGroup/master-ap-northeast-2c.masters.kbseo.k8s.local
Granularity 1Minute
LaunchConfiguration name:master-ap-northeast-2c.masters.kbseo.k8s.local
MaxSize 1
Metrics [GroupDesiredCapacity, GroupInServiceInstances, GroupMaxSize, GroupMinSize, GroupPendingInstances, GroupStandbyInstances, GroupTerminatingInstances, GroupTotalInstances]
MinSize 1
Subnets [name:ap-northeast-2c.kbseo.k8s.local]
SuspendProcesses []
Tags {Name: master-ap-northeast-2c.masters.kbseo.k8s.local, k8s.io/role/master: 1, kops.k8s.io/instancegroup: master-ap-northeast-2c, k8s.io/cluster-autoscaler/node-template/label/kops.k8s.io/instancegroup: master-ap-northeast-2c, KubernetesCluster: kbseo.k8s.local}
AutoscalingGroup/nodes.kbseo.k8s.local
Granularity 1Minute
LaunchConfiguration name:nodes.kbseo.k8s.local
MaxSize 2
Metrics [GroupDesiredCapacity, GroupInServiceInstances, GroupMaxSize, GroupMinSize, GroupPendingInstances, GroupStandbyInstances, GroupTerminatingInstances, GroupTotalInstances]
MinSize 2
Subnets [name:ap-northeast-2c.kbseo.k8s.local]
SuspendProcesses []
Tags {k8s.io/cluster-autoscaler/node-template/label/kops.k8s.io/instancegroup: nodes, KubernetesCluster: kbseo.k8s.local, Name: nodes.kbseo.k8s.local, k8s.io/role/node: 1, kops.k8s.io/instancegroup: nodes}
DHCPOptions/kbseo.k8s.local
DomainName ap-northeast-2.compute.internal
DomainNameServers AmazonProvidedDNS
Shared false
Tags {Name: kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned}
EBSVolume/c.etcd-events.kbseo.k8s.local
AvailabilityZone ap-northeast-2c
Encrypted false
SizeGB 20
Tags {k8s.io/etcd/events: c/c, k8s.io/role/master: 1, kubernetes.io/cluster/kbseo.k8s.local: owned, Name: c.etcd-events.kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local}
VolumeType gp2
EBSVolume/c.etcd-main.kbseo.k8s.local
AvailabilityZone ap-northeast-2c
Encrypted false
SizeGB 20
Tags {k8s.io/etcd/main: c/c, k8s.io/role/master: 1, kubernetes.io/cluster/kbseo.k8s.local: owned, Name: c.etcd-main.kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local}
VolumeType gp2
IAMInstanceProfile/masters.kbseo.k8s.local
Shared false
IAMInstanceProfile/nodes.kbseo.k8s.local
Shared false
IAMInstanceProfileRole/masters.kbseo.k8s.local
InstanceProfile name:masters.kbseo.k8s.local id:masters.kbseo.k8s.local
Role name:masters.kbseo.k8s.local
IAMInstanceProfileRole/nodes.kbseo.k8s.local
InstanceProfile name:nodes.kbseo.k8s.local id:nodes.kbseo.k8s.local
Role name:nodes.kbseo.k8s.local
IAMRole/masters.kbseo.k8s.local
ExportWithID masters
IAMRole/nodes.kbseo.k8s.local
ExportWithID nodes
IAMRolePolicy/masters.kbseo.k8s.local
Role name:masters.kbseo.k8s.local
IAMRolePolicy/nodes.kbseo.k8s.local
Role name:nodes.kbseo.k8s.local
InternetGateway/kbseo.k8s.local
VPC name:kbseo.k8s.local
Shared false
Tags {Name: kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned}
Keypair/apiserver-aggregator
Signer name:apiserver-aggregator-ca id:cn=apiserver-aggregator-ca
Subject cn=aggregator
Type client
Format v1alpha2
Keypair/apiserver-aggregator-ca
Subject cn=apiserver-aggregator-ca
Type ca
Format v1alpha2
Keypair/apiserver-proxy-client
Signer name:ca id:cn=kubernetes
Subject cn=apiserver-proxy-client
Type client
Format v1alpha2
Keypair/ca
Subject cn=kubernetes
Type ca
Format v1alpha2
Keypair/etcd-clients-ca
Subject cn=etcd-clients-ca
Type ca
Format v1alpha2
Keypair/etcd-manager-ca-events
Subject cn=etcd-manager-ca-events
Type ca
Format v1alpha2
Keypair/etcd-manager-ca-main
Subject cn=etcd-manager-ca-main
Type ca
Format v1alpha2
Keypair/etcd-peers-ca-events
Subject cn=etcd-peers-ca-events
Type ca
Format v1alpha2
Keypair/etcd-peers-ca-main
Subject cn=etcd-peers-ca-main
Type ca
Format v1alpha2
Keypair/kops
Signer name:ca id:cn=kubernetes
Subject o=system:masters,cn=kops
Type client
Format v1alpha2
Keypair/kube-controller-manager
Signer name:ca id:cn=kubernetes
Subject cn=system:kube-controller-manager
Type client
Format v1alpha2
Keypair/kube-proxy
Signer name:ca id:cn=kubernetes
Subject cn=system:kube-proxy
Type client
Format v1alpha2
Keypair/kube-scheduler
Signer name:ca id:cn=kubernetes
Subject cn=system:kube-scheduler
Type client
Format v1alpha2
Keypair/kubecfg
Signer name:ca id:cn=kubernetes
Subject o=system:masters,cn=kubecfg
Type client
Format v1alpha2
Keypair/kubelet
Signer name:ca id:cn=kubernetes
Subject o=system:nodes,cn=kubelet
Type client
Format v1alpha2
Keypair/kubelet-api
Signer name:ca id:cn=kubernetes
Subject cn=kubelet-api
Type client
Format v1alpha2
Keypair/master
AlternateNames [100.64.0.1, 127.0.0.1, api.internal.kbseo.k8s.local, api.kbseo.k8s.local, kubernetes, kubernetes.default, kubernetes.default.svc, kubernetes.default.svc.cluster.local]
Signer name:ca id:cn=kubernetes
Subject cn=kubernetes-master
Type server
Format v1alpha2
LaunchConfiguration/master-ap-northeast-2c.masters.kbseo.k8s.local
AssociatePublicIP true
IAMInstanceProfile name:masters.kbseo.k8s.local id:masters.kbseo.k8s.local
ImageID kope.io/k8s-1.16-debian-stretch-amd64-hvm-ebs-2020-01-17
InstanceType c4.large
RootVolumeDeleteOnTermination true
RootVolumeSize 64
RootVolumeType gp2
SSHKey name:kubernetes.kbseo.k8s.local-12:b8:34:12:0c:2d:97:b3:2e:3c:5b:98:2c:5c:70:a8 id:kubernetes.kbseo.k8s.local-12:b8:34:12:0c:2d:97:b3:2e:3c:5b:98:2c:5c:70:a8
SecurityGroups [name:masters.kbseo.k8s.local]
SpotPrice
LaunchConfiguration/nodes.kbseo.k8s.local
AssociatePublicIP true
IAMInstanceProfile name:nodes.kbseo.k8s.local id:nodes.kbseo.k8s.local
ImageID kope.io/k8s-1.16-debian-stretch-amd64-hvm-ebs-2020-01-17
InstanceType t2.medium
RootVolumeDeleteOnTermination true
RootVolumeSize 128
RootVolumeType gp2
SSHKey name:kubernetes.kbseo.k8s.local-12:b8:34:12:0c:2d:97:b3:2e:3c:5b:98:2c:5c:70:a8 id:kubernetes.kbseo.k8s.local-12:b8:34:12:0c:2d:97:b3:2e:3c:5b:98:2c:5c:70:a8
SecurityGroups [name:nodes.kbseo.k8s.local]
SpotPrice
LoadBalancer/api.kbseo.k8s.local
LoadBalancerName api-kbseo-k8s-local-a1vmch
Subnets [name:ap-northeast-2c.kbseo.k8s.local]
SecurityGroups [name:api-elb.kbseo.k8s.local]
Listeners {443: {"InstancePort":443,"SSLCertificateID":""}}
HealthCheck {"Target":"SSL:443","HealthyThreshold":2,"UnhealthyThreshold":2,"Interval":10,"Timeout":5}
ConnectionSettings {"IdleTimeout":300}
CrossZoneLoadBalancing {"Enabled":false}
SSLCertificateID
Tags {Name: api.kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned}
LoadBalancerAttachment/api-master-ap-northeast-2c
LoadBalancer name:api.kbseo.k8s.local id:api.kbseo.k8s.local
AutoscalingGroup name:master-ap-northeast-2c.masters.kbseo.k8s.local id:master-ap-northeast-2c.masters.kbseo.k8s.local
ManagedFile/etcd-cluster-spec-events
Location backups/etcd/events/control/etcd-cluster-spec
ManagedFile/etcd-cluster-spec-main
Location backups/etcd/main/control/etcd-cluster-spec
ManagedFile/kbseo.k8s.local-addons-bootstrap
Location addons/bootstrap-channel.yaml
ManagedFile/kbseo.k8s.local-addons-core.addons.k8s.io
Location addons/core.addons.k8s.io/v1.4.0.yaml
ManagedFile/kbseo.k8s.local-addons-dns-controller.addons.k8s.io-k8s-1.12
Location addons/dns-controller.addons.k8s.io/k8s-1.12.yaml
ManagedFile/kbseo.k8s.local-addons-dns-controller.addons.k8s.io-k8s-1.6
Location addons/dns-controller.addons.k8s.io/k8s-1.6.yaml
ManagedFile/kbseo.k8s.local-addons-dns-controller.addons.k8s.io-pre-k8s-1.6
Location addons/dns-controller.addons.k8s.io/pre-k8s-1.6.yaml
ManagedFile/kbseo.k8s.local-addons-kops-controller.addons.k8s.io-k8s-1.16
Location addons/kops-controller.addons.k8s.io/k8s-1.16.yaml
ManagedFile/kbseo.k8s.local-addons-kube-dns.addons.k8s.io-k8s-1.12
Location addons/kube-dns.addons.k8s.io/k8s-1.12.yaml
ManagedFile/kbseo.k8s.local-addons-kube-dns.addons.k8s.io-k8s-1.6
Location addons/kube-dns.addons.k8s.io/k8s-1.6.yaml
ManagedFile/kbseo.k8s.local-addons-kube-dns.addons.k8s.io-pre-k8s-1.6
Location addons/kube-dns.addons.k8s.io/pre-k8s-1.6.yaml
ManagedFile/kbseo.k8s.local-addons-kubelet-api.rbac.addons.k8s.io-k8s-1.9
Location addons/kubelet-api.rbac.addons.k8s.io/k8s-1.9.yaml
ManagedFile/kbseo.k8s.local-addons-limit-range.addons.k8s.io
Location addons/limit-range.addons.k8s.io/v1.5.0.yaml
ManagedFile/kbseo.k8s.local-addons-rbac.addons.k8s.io-k8s-1.8
Location addons/rbac.addons.k8s.io/k8s-1.8.yaml
ManagedFile/kbseo.k8s.local-addons-storage-aws.addons.k8s.io-v1.15.0
Location addons/storage-aws.addons.k8s.io/v1.15.0.yaml
ManagedFile/kbseo.k8s.local-addons-storage-aws.addons.k8s.io-v1.6.0
Location addons/storage-aws.addons.k8s.io/v1.6.0.yaml
ManagedFile/kbseo.k8s.local-addons-storage-aws.addons.k8s.io-v1.7.0
Location addons/storage-aws.addons.k8s.io/v1.7.0.yaml
ManagedFile/manifests-etcdmanager-events
Location manifests/etcd/events.yaml
ManagedFile/manifests-etcdmanager-main
Location manifests/etcd/main.yaml
Route/0.0.0.0/0
RouteTable name:kbseo.k8s.local
CIDR 0.0.0.0/0
InternetGateway name:kbseo.k8s.local
RouteTable/kbseo.k8s.local
VPC name:kbseo.k8s.local
Shared false
Tags {Name: kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned, kubernetes.io/kops/role: public}
RouteTableAssociation/ap-northeast-2c.kbseo.k8s.local
RouteTable name:kbseo.k8s.local
Subnet name:ap-northeast-2c.kbseo.k8s.local
SSHKey/kubernetes.kbseo.k8s.local-12:b8:34:12:0c:2d:97:b3:2e:3c:5b:98:2c:5c:70:a8
KeyFingerprint cd:b0:00:ed:d3:5a:e4:b3:17:51:80:87:9c:50:48:31
Secret/admin
Secret/kube
Secret/kube-proxy
Secret/kubelet
Secret/system:controller_manager
Secret/system:dns
Secret/system:logging
Secret/system:monitoring
Secret/system:scheduler
SecurityGroup/api-elb.kbseo.k8s.local
Description Security group for api ELB
VPC name:kbseo.k8s.local
RemoveExtraRules [port=443]
Tags {Name: api-elb.kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned}
SecurityGroup/masters.kbseo.k8s.local
Description Security group for masters
VPC name:kbseo.k8s.local
RemoveExtraRules [port=22, port=443, port=2380, port=2381, port=4001, port=4002, port=4789, port=179]
Tags {KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned, Name: masters.kbseo.k8s.local}
SecurityGroup/nodes.kbseo.k8s.local
Description Security group for nodes
VPC name:kbseo.k8s.local
RemoveExtraRules [port=22]
Tags {kubernetes.io/cluster/kbseo.k8s.local: owned, Name: nodes.kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local}
SecurityGroupRule/all-master-to-master
SecurityGroup name:masters.kbseo.k8s.local
SourceGroup name:masters.kbseo.k8s.local
SecurityGroupRule/all-master-to-node
SecurityGroup name:nodes.kbseo.k8s.local
SourceGroup name:masters.kbseo.k8s.local
SecurityGroupRule/all-node-to-node
SecurityGroup name:nodes.kbseo.k8s.local
SourceGroup name:nodes.kbseo.k8s.local
SecurityGroupRule/api-elb-egress
SecurityGroup name:api-elb.kbseo.k8s.local
CIDR 0.0.0.0/0
Egress true
SecurityGroupRule/https-api-elb-0.0.0.0/0
SecurityGroup name:api-elb.kbseo.k8s.local
CIDR 0.0.0.0/0
Protocol tcp
FromPort 443
ToPort 443
SecurityGroupRule/https-elb-to-master
SecurityGroup name:masters.kbseo.k8s.local
Protocol tcp
FromPort 443
ToPort 443
SourceGroup name:api-elb.kbseo.k8s.local
SecurityGroupRule/icmp-pmtu-api-elb-0.0.0.0/0
SecurityGroup name:api-elb.kbseo.k8s.local
CIDR 0.0.0.0/0
Protocol icmp
FromPort 3
ToPort 4
SecurityGroupRule/master-egress
SecurityGroup name:masters.kbseo.k8s.local
CIDR 0.0.0.0/0
Egress true
SecurityGroupRule/node-egress
SecurityGroup name:nodes.kbseo.k8s.local
CIDR 0.0.0.0/0
Egress true
SecurityGroupRule/node-to-master-tcp-1-2379
SecurityGroup name:masters.kbseo.k8s.local
Protocol tcp
FromPort 1
ToPort 2379
SourceGroup name:nodes.kbseo.k8s.local
SecurityGroupRule/node-to-master-tcp-2382-4000
SecurityGroup name:masters.kbseo.k8s.local
Protocol tcp
FromPort 2382
ToPort 4000
SourceGroup name:nodes.kbseo.k8s.local
SecurityGroupRule/node-to-master-tcp-4003-65535
SecurityGroup name:masters.kbseo.k8s.local
Protocol tcp
FromPort 4003
ToPort 65535
SourceGroup name:nodes.kbseo.k8s.local
SecurityGroupRule/node-to-master-udp-1-65535
SecurityGroup name:masters.kbseo.k8s.local
Protocol udp
FromPort 1
ToPort 65535
SourceGroup name:nodes.kbseo.k8s.local
SecurityGroupRule/ssh-external-to-master-0.0.0.0/0
SecurityGroup name:masters.kbseo.k8s.local
CIDR 0.0.0.0/0
Protocol tcp
FromPort 22
ToPort 22
SecurityGroupRule/ssh-external-to-node-0.0.0.0/0
SecurityGroup name:nodes.kbseo.k8s.local
CIDR 0.0.0.0/0
Protocol tcp
FromPort 22
ToPort 22
Subnet/ap-northeast-2c.kbseo.k8s.local
ShortName ap-northeast-2c
VPC name:kbseo.k8s.local
AvailabilityZone ap-northeast-2c
CIDR 172.20.32.0/19
Shared false
Tags {KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned, SubnetType: Public, kubernetes.io/role/elb: 1, Name: ap-northeast-2c.kbseo.k8s.local}
VPC/kbseo.k8s.local
CIDR 172.20.0.0/16
EnableDNSHostnames true
EnableDNSSupport true
Shared false
Tags {Name: kbseo.k8s.local, KubernetesCluster: kbseo.k8s.local, kubernetes.io/cluster/kbseo.k8s.local: owned}
VPCDHCPOptionsAssociation/kbseo.k8s.local
VPC name:kbseo.k8s.local
DHCPOptions name:kbseo.k8s.local
Must specify --yes to apply changes
Cluster configuration has been created.
Suggestions:
* list clusters with: kops get cluster
* edit this cluster with: kops edit cluster kbseo.k8s.local
* edit your node instance group: kops edit ig --name=kbseo.k8s.local nodes
* edit your master instance group: kops edit ig --name=kbseo.k8s.local master-ap-northeast-2c
Finally configure your cluster with: kops update cluster --name kbseo.k8s.local --yes
자 클러스터가 만들어졌는지 확인해볼까요?
[root@ip-172-31-37-116 ~]# kops get ig --name ${NAME}
NAME ROLE MACHINETYPE MIN MAX ZONES
master-ap-northeast-2c Master c4.large 1 1 ap-northeast-2c
nodes Node t2.medium 2 2 ap-northeast-2c
# 여기에서 주의할 점은 실제 리소스가 아닌 설정만을 생성한다는 점 입니다.
# kops update cluster로 실제 구성이 가능합니다.
기본으로 c4.large타입과 t2.medium이 생성되는데
요금의 압박이 있기에 인스턴스 사이즈를 변경해줍니다.
[root@ip-172-31-37-116 ~]# kops edit ig master-ap-northeast-2c --name ${NAME}
apiVersion: kops.k8s.io/v1alpha2
ps edit ig nodes --name ${NAME}
kind: InstanceGroup
metadata:
creationTimestamp: "2020-04-30T05:04:28Z"
labels:
kops.k8s.io/cluster: kbseo.k8s.local
name: master-ap-northeast-2c
spec:
image: kope.io/k8s-1.16-debian-stretch-amd64-hvm-ebs-2020-01-17
machineType: c4.large <------- 원하고자 하는 instance type
maxSize: 1
minSize: 1
nodeLabels:
kops.k8s.io/instancegroup: master-ap-northeast-2c
role: Master
subnets:
- ap-northeast-2c
[root@ip-172-31-37-116 ~]# kops edit ig nodes --name ${NAME}
apiVersion: kops.k8s.io/v1alpha2
kind: InstanceGroup
metadata:
creationTimestamp: "2020-04-30T05:04:28Z"
generation: 1
labels:
kops.k8s.io/cluster: kbseo.k8s.local
name: nodes
spec:
image: kope.io/k8s-1.16-debian-stretch-amd64-hvm-ebs-2020-01-17
machineType: t3.small
maxSize: 2
minSize: 2
nodeLabels:
kops.k8s.io/instancegroup: nodes
role: Node
subnets:
- ap-northeast-2c
~
# 확인
[root@ip-172-31-37-116 ~]# kops get ig --name ${NAME}
NAME ROLE MACHINETYPE MIN MAX ZONES
master-ap-northeast-2c Master t2.small 1 1 ap-northeast-2c
nodes Node t2.small 2 2 ap-northeast-2c
[root@ip-172-31-37-116 ~]# kops update cluster ${NAME} --yes
I0430 06:26:24.977771 8160 apply_cluster.go:556] Gossip DNS: skipping DNS validation
I0430 06:26:25.625424 8160 executor.go:103] Tasks: 0 done / 92 total; 44 can run
I0430 06:26:26.447564 8160 executor.go:103] Tasks: 44 done / 92 total; 24 can run
I0430 06:26:27.165011 8160 executor.go:103] Tasks: 68 done / 92 total; 20 can run
I0430 06:26:27.415603 8160 executor.go:103] Tasks: 88 done / 92 total; 3 can run
I0430 06:26:27.586632 8160 executor.go:103] Tasks: 91 done / 92 total; 1 can run
I0430 06:26:27.675721 8160 executor.go:103] Tasks: 92 done / 92 total; 0 can run
I0430 06:26:27.768309 8160 update_cluster.go:305] Exporting kubecfg for cluster
kops has set your kubectl context to kbseo.k8s.local
Cluster changes have been applied to the cloud.
Changes may require instances to restart: kops rolling-update cluster
[root@ip-172-31-37-116 ~]#
[root@ip-172-31-37-116 ~]# kops rolling-update cluster
Using cluster from kubectl context: kbseo.k8s.local
NAME STATUS NEEDUPDATE READY MIN MAX NODES
master-ap-northeast-2c NeedsUpdate 1 0 1 1 1
nodes NeedsUpdate 2 0 2 2 2
edit 명령어를 통해 리소스들을 수정해 줄 수 있습니다.
[root@ip-172-31-37-116 ~]# kops edit cluster ${NAME}
Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: kops.k8s.io/v1alpha2
kind: Cluster
metadata:
creationTimestamp: "2020-04-30T05:04:28Z"
name: kbseo.k8s.local
spec:
api:
loadBalancer:
type: Public
authorization:
rbac: {}
channel: stable
cloudProvider: aws
configBase: s3://kubernetes-aws-kbseo-io/kbseo.k8s.local
etcdClusters:
- cpuRequest: 200m
etcdMembers:
- instanceGroup: master-ap-northeast-2c
name: c
memoryRequest: 100Mi
name: main
- cpuRequest: 100m
etcdMembers:
- instanceGroup: master-ap-northeast-2c
name: c
memoryRequest: 100Mi
name: events
iam:
allowContainerRegistry: true
legacy: false
kubelet:
anonymousAuth: false
kubernetesApiAccess:
- 0.0.0.0/0
kubernetesVersion: 1.16.8
masterInternalName: api.internal.kbseo.k8s.local
masterPublicName: api.kbseo.k8s.local
networkCIDR: 172.20.0.0/16
networking:
kubenet: {}
nonMasqueradeCIDR: 100.64.0.0/10
sshAccess:
- 0.0.0.0/0
subnets:
- cidr: 172.20.32.0/19
name: ap-northeast-2c
type: Public
zone: ap-northeast-2c
topology:
dns:
type: Public
masters: public
nodes: public
3-4. 클러스터 생성
실제 리소스들을 한번 만들어볼까요?
[root@ip-172-31-37-116 ~]# kops update cluster ${NAME} --yes
Cluster is starting. It should be ready in a few minutes.
Suggestions:
* validate cluster: kops validate cluster
* list nodes: kubectl get nodes --show-labels
* ssh to the master: ssh -i ~/.ssh/id_rsa admin@api.kbseo.k8s.local
* the admin user is specific to Debian. If not using Debian please use the appropriate user based on your OS.
* read about installing addons at: https://github.com/kubernetes/kops/blob/master/docs/operations/addons.md.
완료되는데 까지 시간이 조금 걸립니다 ㅎ.ㅎ
번외로
kops delete cluster --name ${NAME} --yes해당 명령어를 통해 클러스터를 삭제시킬 수 있습니다.
참조
https://kubernetes.io/ko/docs/setup/production-environment/tools/kops/
'Container, Kubernetes' 카테고리의 다른 글
| [Container 시리즈] 05. kubernetes란? Kubernetes 기초개념 (0) | 2020.06.04 |
|---|---|
| [Container 시리즈] 04. Application을 컨테이너화 해보자 (1) | 2020.05.27 |
| [Container 시리즈] 03. Docker File, Docker Image - 도커파일 및 이미지에 대하여 (0) | 2020.04.24 |
| [Container 시리즈] 02. Docker사용법 Docker Basic Command (0) | 2020.04.24 |
| [Container 시리즈] 01. 도커를 설치하고 실행해보자! Docker on Amazon Linux (0) | 2020.04.24 |
